Q8 Reading Pen
Flagship OID 3.0 reading pen with a 2.4-inch 320x240 color TFT screen and video playback, powered by the SONIX 73001 chip with front MIC, two front and three side buttons, built-in TF storage up to 32 GB, side Micro USB and a 600 mAh rechargeable battery. The top specification for multimedia curricula, electronics retail and high-end gift channels.

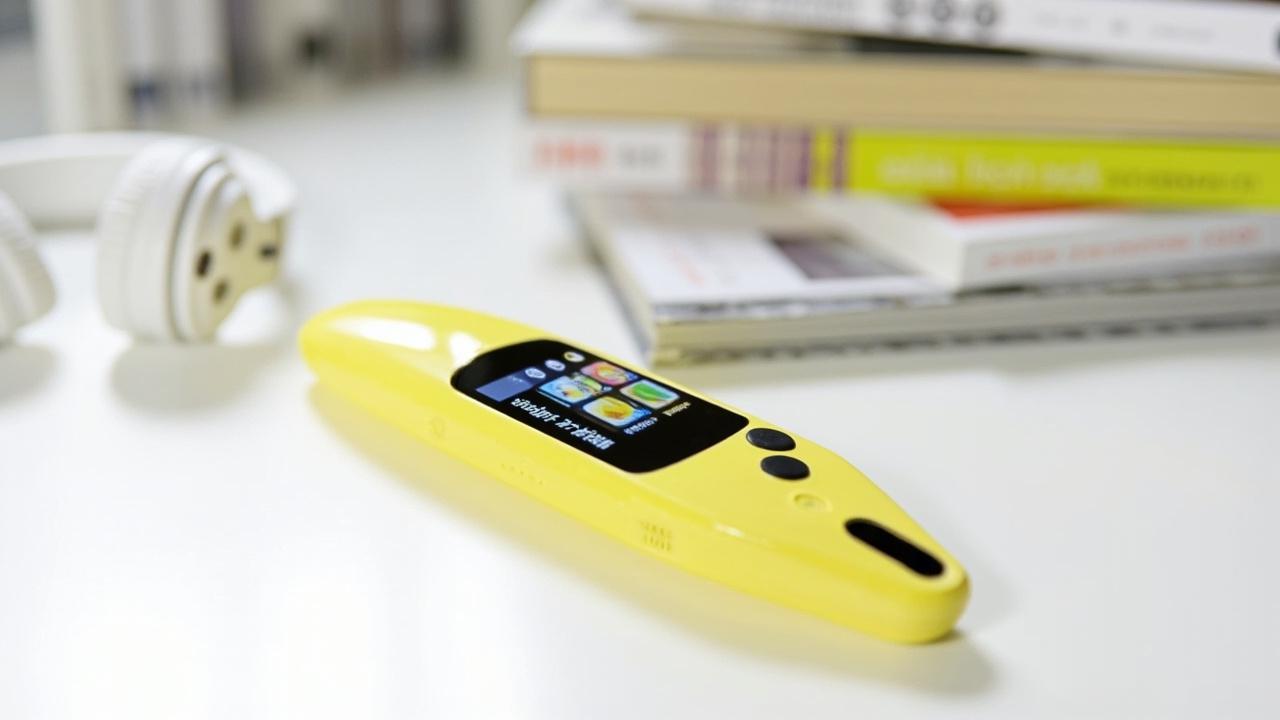

The Q8 Reading Pen is the flagship of the range — the model for programs that genuinely need a screen. A 2.4-inch 320×240 color TFT display drives a visual menu interface and video playback, powered by the advanced SONIX 73001 chip with OID 3.0 recognition, a front microphone and built-in TF storage up to 32 GB. In the industry these devices are also widely called talking pens.
Two front buttons and three side buttons keep navigation direct, the side-mounted Micro USB port keeps the screen bezel clean, and a 600 mAh battery supports the extra power load of a color display. For electronics-retail shelves, high-end gift channels and multimedia curricula that combine books, audio and video, the Q8 is the top specification we produce.
Key features
OID 3.0 + SONIX 73001
Our most advanced reading-pen chipset combines third-generation OID recognition with the processing needed for color menus and video playback.
2.4-inch color TFT
A 320×240 color display renders a visual app menu, track information and video — a completely different interaction level from dot-matrix models.
Video playback
Multimedia curricula can pair OID books with video lessons, animations and spoken-word video clips played directly on the pen.
TF storage up to 32 GB
Built-in TF card support up to 32 GB provides room for large audio libraries plus video content, configured per project.
Five-button control + MIC
Two front buttons and three side buttons navigate the screen menus, with a front microphone for voice features and a 3.5 mm earphone jack.
600 mAh battery
The largest battery in the range supports the color display; it charges through a side-mounted Micro USB port.
Specifications
| Model / SKU | Q8 |
|---|---|
| Main control chip | SONIX 73001 |
| OID version | SONIX OID 3.0 |
| Display | 2.4-inch color TFT display, 320×240 dots; video playback supported |
| Storage | Built-in TF card support up to 32 GB |
| Buttons | 2 front buttons + 3 side buttons |
| Microphone | Front MIC for voice features |
| Charging / data port | Side-mounted Micro USB |
| Audio | Built-in speaker; 3.5 mm earphone jack |
| Battery | Built-in 600 mAh rechargeable lithium battery |
| Typical content | Multimedia OID curricula combining books, audio libraries and video lessons |
Need dimensions, weight, supported video formats, card configuration or lab test data? These are configured per production batch — ask our sales engineer for the current Q8 specification sheet.
Typical applications
Multimedia curricula
Programs that pair printed OID books with video lessons, animated phonics or talking-head explanations run the full media mix on one device.
Electronics-retail flagship
A color screen is the shelf feature that separates a premium reading pen from the audio-only row; the Q8 anchors the top of a retail assortment.
High-end gift channels
Pen-plus-books-and-video gift sets give premium buyers a demonstrable upgrade: tap the page, hear the audio, watch the lesson.
Large multi-title libraries
Storage up to 32 GB supports ambitious catalogs — multi-level courses, several languages and bundled video without swapping cards.
Full Specifications & Procurement Information
For complete technical specifications, commercial terms, MOQ, lead time, packaging details and certifications, please download the Q8 reading pen specification sheet below.
Frequently Asked Questions about the Q8 Reading Pen
Answers to the most common buyer questions about the Q8 OID reading pen — order process, customization, compatibility, warranty and after-sales support.
"What makes the Q8 different from the K7 and L5?"
The Q8 is our flagship reading pen with a 2.4-inch 320x240 colour TFT screen, video playback, and a SONIX 73001 multimedia processor. The K7 and L5 are audio-only readers.
"Can the Q8 play video books?"
Yes. The Q8 plays MP4 / AVI / 3GP videos at 320x240 resolution. Each OID 3.0 book can carry both audio and a synchronized video clip.
"What is the maximum TF card size the Q8 supports?"
Micro-SD up to 32 GB, holding approximately 6,000 audio books or 30+ hours of video.
"How long does the Q8 battery last?"
The 600 mAh battery delivers 4–5 hours of video playback or 6–7 hours of audio reading. Standby is 120+ days.
"Does the Q8 have a microphone?"
Yes. The Q8 has a built-in front MIC for voice recording and pronunciation comparison.
"Is the Q8 suitable for high-end retail?"
Yes. The Q8 is widely used as a flagship SKU in electronics retail and premium gift channels because of its screen, video playback, and multimedia capabilities.
"What is the warranty on the Q8?"
12-month manufacturer warranty. Replacement parts stocked for 36 months.
How to use the Q8 Reading Pen
- "Power on the Q8". Press and hold the power button for 2 seconds. The TFT screen lights up and the welcome video plays.
- "Insert a micro-SD card". Open the SD slot cover on the side, insert the card (gold contacts facing up) until it clicks, then close the cover.
- "Switch between audio and video books". The Q8 auto-detects whether the book is audio-only or audio+video, and switches mode automatically.
- "Record your own voice". Press the MIC button (fifth button) to start recording. Press again to stop. Recordings are saved as MP3 to the SD card.
Q8 Reading Pen — which fits your market?
Compare the Q8 with the most common alternatives in our lineup, side by side.
| Model | Comparison angle | View product |
|---|---|---|
| L5 | "Q8 multimedia vs L5 audio-only" | L5 |
| K7 | "Q8 flagship vs K7 mid-range" | K7 |
| B2 | "Q8 vs B2 mid-range positioning" | B2 |
Procurement Information for the Q8 Reading Pen
Standard terms for wholesale and OEM orders. Contact us for distributor pricing, custom quotes and shipping estimates.
| Minimum order quantity (MOQ) | 1000 pieces per SKU / colour |
|---|---|
| Sample lead time | 10 days |
| Bulk production lead time | 35 days after deposit and artwork approval |
| Sample fee | USD 70–100 per piece (refundable against bulk order) |
| Payment terms | T/T 30/70; L/C for orders over USD 50; 000 |
| Shipping ports | Shenzhen / Ningbo / Shanghai |
| Packaging options | gift box, retail blister, OEM neutral box |
| Trade terms | FOB / CIF / DDP available on request |
Request a quote for Q8 Reading Pen · Wholesale program overview · Contact engineering
Certifications & Compliance for the Q8 Reading Pen
All Q8 reading pens are produced in our ISO 9001-certified factory and ship with the following test reports and compliance certificates. PDF copies available on request.
- CE — European Conformity — mandatory for sale in the European Economic Area
- FCC — Federal Communications Commission — required for electronic devices sold in the United States
- RoHS — Restriction of Hazardous Substances — limits lead, mercury, cadmium and other hazardous materials
- EN71 — European toy safety standard
- ASTM F963 — US toy safety standard — mechanical, flammability, chemical, electrical
- CPSIA — US Consumer Product Safety Improvement Act — children's products safety
- ISO 9001 — Quality management system certification — factory production control
See all factory certifications for full audit history and test lab reports.
OEM customization on the Q8
The Q8 uses existing production tooling, so customization starts at much lower volumes than a brand-new housing project:
- Custom colors — plastic compound matched to your Pantone plaque for the housing and bezel trim.
- Logo and branding — pad printing on the housing and custom-printed premium retail boxes, manuals and inserts.
- Screen UI — menu structure, icons and language strings are configured per firmware build; provide your UI flow and content plan and engineering confirms the build.
- Audio and video mastering — file preparation for large mixed-media libraries; see how to prepare audio and OID print files and ask sales for the current video format specification.
- Family alternatives — Do students really need video? A dot-matrix status display costs less: compare the Y6; the model selection guide helps position the line.
See OEM vs ODM reading pen customization options for how color runs, logo work, packaging and new tooling are quoted.
Frequently asked questions
Is the Q8 screen a touchscreen?
The 2.4-inch TFT is a color display with navigation through the two front and three side buttons. Exact firmware interaction (menus, playback and video controls) is configured per project — request the current UI specification from sales.
What video content can it play?
The Q8 supports video playback for curriculum media loaded on the internal TF storage. Supported formats, resolution and file preparation rules are firmware-specific and provided with the Q8 specification sheet so your content team masters files correctly.
How is the Q8 different from the Y6 and KF1?
The Y6 and KF1 use small dot-matrix LCDs for text and status only; the Q8 uses a 2.4-inch color TFT capable of video and a visual icon menu, backed by the SONIX 73001 chip, up to 32 GB storage and a 600 mAh battery.
Do we need video, or is an audio pen enough?
Most reading programs succeed on audio alone, and a dot-matrix or button model leaves more budget margin. Choose the Q8 when video lessons are central to the pedagogy or when the channel demands a flagship screen SKU — the selection guide walks through the decision.
Can the UI and menus be in our language?
Yes. Menu strings and audio/video content are configured per firmware build, so bilingual and non-Latin interfaces are routine. Confirm your target languages when requesting a quotation.
Plan a multimedia flagship program on the Q8
Send us your content plan, target market, estimated order quantity and UI requirements, and our engineering sales team will reply with a firmware and storage configuration and project pricing.
